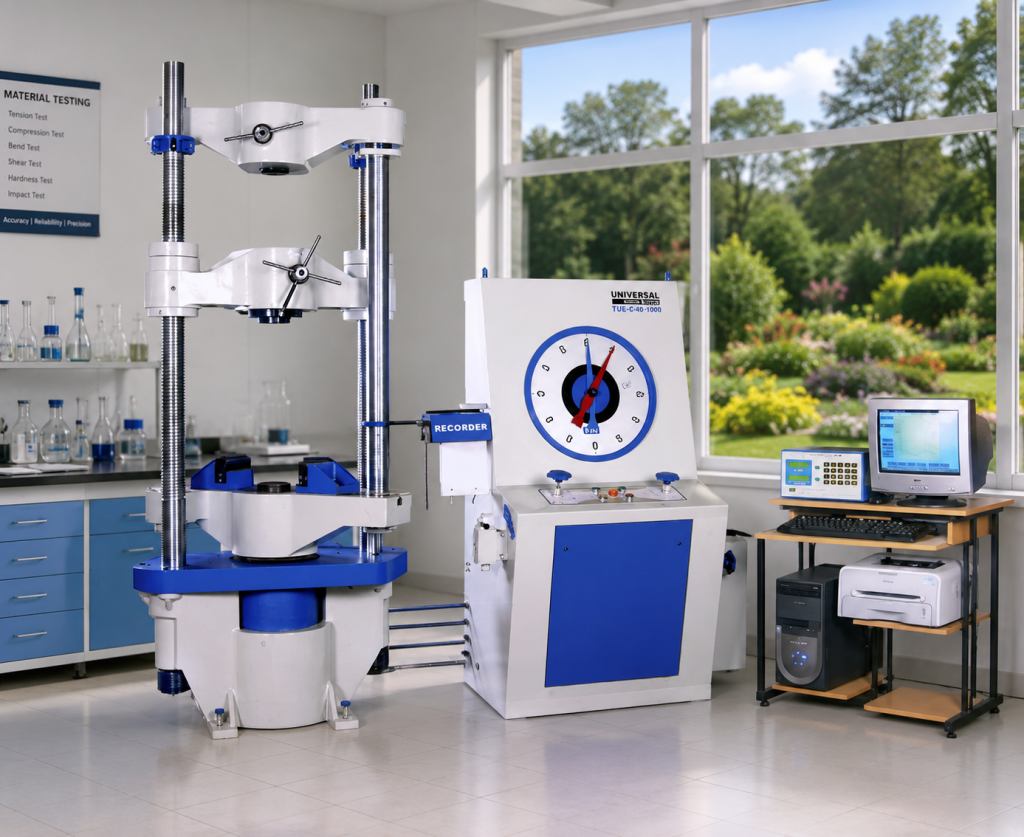

Dual-Mode Control for Flexible Testing

• Dual Control System: A DC valve enables smooth selection between the Analogue and Computerized Control Panel, allowing one system to operate at a time.
• Complete Control Options: Both analogue and computerized panels are supplied as standard, offering flexibility for conventional and digital testing environments.
• Wide Capacity Range: Models are available from 100 kN to 2000 kN to suit a broad range of material testing requirements.
• High Loading Accuracy: Maintains loading accuracy within ±1%, supporting reliable and repeatable test results.
• Standards Compliant: Designed to conform to IS 1828 / BS 1610 requirements.

Applications: Suitable for laboratories, quality-control facilities, research institutions, educational institutes, and industrial material-testing applications.

Technical Specification for Analogue Cum Computerised Versions

MODEL	TUE-CN-100	TUE-CN-200	TUE-CN-400	TUE-CN-600	TUE-CN-1000	TUE-CN-2000
Analogue System
1’st Range (kN)	0 – 100	0 – 200	0 – 400	0 – 600	0 – 1000	0 – 2000
Least Count (kN)	0.2	0.4	0.8	1	2	4
2’nd Range (kN)	0 – 50	0 – 100	0 – 200	0 – 300	0 – 500	0 – 1000
Least Count (kN)	0.1	0.2	0.4	0.5	1	2
3’rd Range (kN)	0 – 25	0 – 50	0 – 100	0 – 120	0 – 250	0 – 500
Least Count (kN)	0.05	0.1	0.2	0.2	0.5	1
4’th Range (kN)	0 – 10	0 – 20	0 – 40	0 – 60	0 – 100	0 – 200
Least Count (kN)	0.02	0.04	0.08	0.1	0.2	0.4
Computerised System
Measuring Range (kN)	0 – 100	0 – 200	0 – 400	0 – 600	0 – 1000	0 – 2000
Least Count (kN)	0.01	0.02	0.04	0.06	0.1	0.2
Load Range in kN with accuracy of measurement ±1%	2 to 100	4 to 200	8 to 400	12 to 600	20 to 1000	40 to 2000
Resolution of Piston Movement (mm)	0.1	0.1	0.1	0.1	0.1	0.1
Over all dimensions approx. (mm)	1950 x 800 x 1850	2000 x 800 x 1900	2100 x 800 x 2060	2200 x 800 x 2400	2350 x 800 x 2700	3000 x 800 x 3600
Weight approx. (kg.)	1300	1400	2200	3200	4200	8600

Common Specification for all Versions

MODEL	TUE-CN-100	TUE-CN-200	TUE-CN-400	TUE-CN-600	TUE-CN-1000	TUE-CN-2000
Measuring Capacity (kN)	100	200	400	600	1000	2000
Max. Tensile Clearance at fully decended piston position (mm)	50 – 700	50 – 700	50 – 700	50 – 800	50 – 850	50 – 900
Max. Clearance for Compression Test (mm)	0 – 700	0 – 700	0 – 700	0 – 800	0 – 850	0 – 900
Distance between columns (mm)	450	500	500	600	750	850
Piston Stroke (mm)	150	200	200	250	250	300
Max. straining speed at no load (mm/min)	300	150	150	100	80	45
Power Supply	3 phase 415V 50Hz AC
Total H.P.	1.5	1.5	2.5	2.5	4.0	6.5

Standard Accessories for all Version

MODEL	TUE-CN-100	TUE-CN-200	TUE-CN-400	TUE-CN-600	TUE-CN-1000	TUE-CN-2000
Pair for compression plate dia (mm)	120	120	120	120	160	220
Tension Test Jaws
For Round Specimen dia (mm)	10 – 20	10 – 20	10 – 25	10 – 25	10 – 30	20 – 40
For Round Specimen dia (mm)	20 – 30	20 – 30	25 – 40	25 – 40	30 – 50	40 – 60
For Round Specimen dia (mm)	–	–	–	40 – 55	50 – 70	60 – 80
For Flat Specimen Thickness (mm)	0 – 10	0 – 10	0 – 15	0 – 15	0 – 22	0 – 22
For Flat Specimen Thickness (mm)	10 – 20	10 – 20	15 – 30	15 – 30	22 – 44	22 – 45
For Flat Specimen Thickness (mm)	–	–	–	–	44 – 65	45 – 70
Max. width of Flat Specimen (mm)	50	50	65	70	70	90
Transverse Test
Adjustable Roller Support of width (mm)	150	150	150	160	160	200
Diameter (mm)	30	30	30	50	50	70
With Max. adjustable clearance (mm)	450	500	500	600	800	900
Punch tops of radius (mm)	6	6	10	16	16	30
Punch tops of radius (mm)	12	12	16	22	22	40
